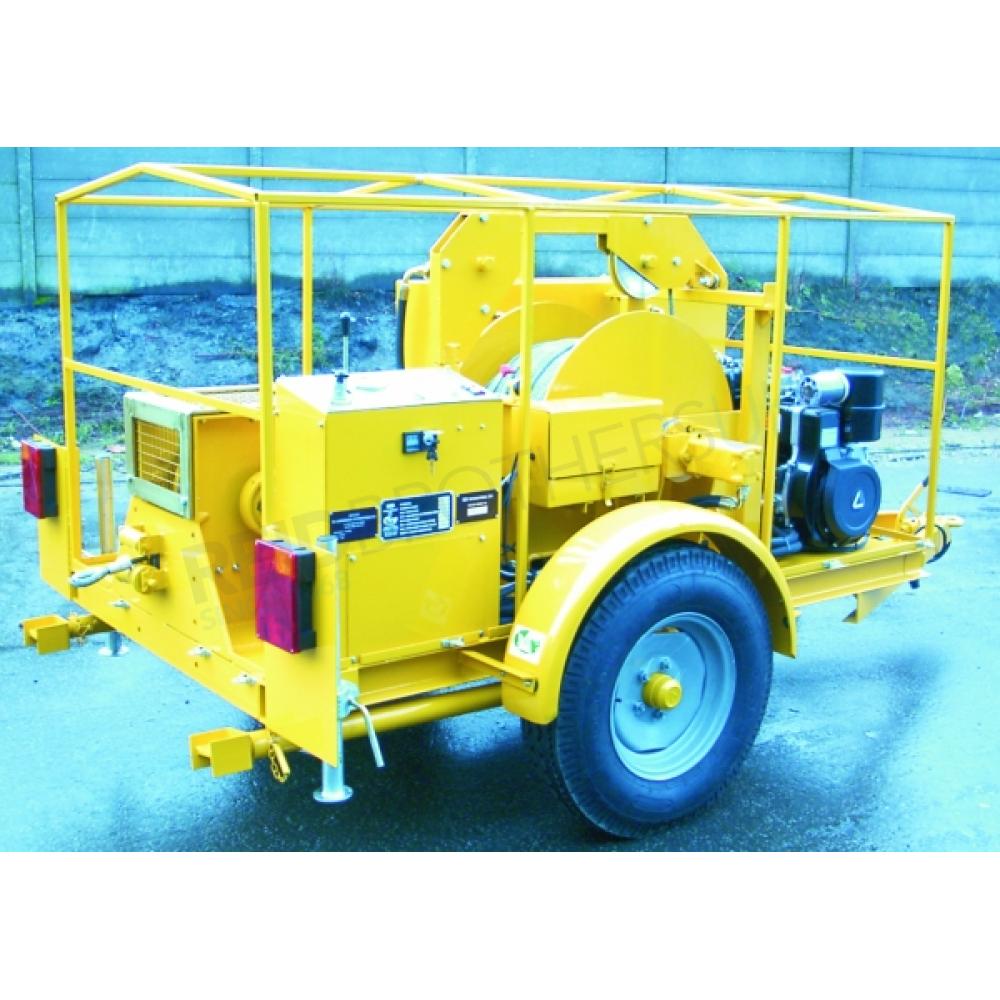

Power Cable Installation Winch - TW5000

The TW5000 is currently our largest line pull winch and utilises the Twin Capstan design as a way of developing the required tension. The winch is a single axle and therefore easy to manoeuvre. It is fitted with a pull load indicator via the dial gauge and obtains its power from a twin cylinder diesel engine.
  • Available for export available for export

Key product features

Power Unit Main Drive  Rewind Drum Cable Payout Pull Load Indicator Oil Cooler Rewind Drum Rope Layering Rope Pull / Speed
Diesel Engine rated at 19.1Kw at 3000rpm. Independently driven twin grooved bull wheels. Hydraulically driven for rope tension Via hydraulic system - powered Via dial gauge for pressure/tonnes pull Fitted with thermostatic fan 750mtr x 14mm dia Rope Free moving layering arm 5.0 tonne - 12mtrs/min
