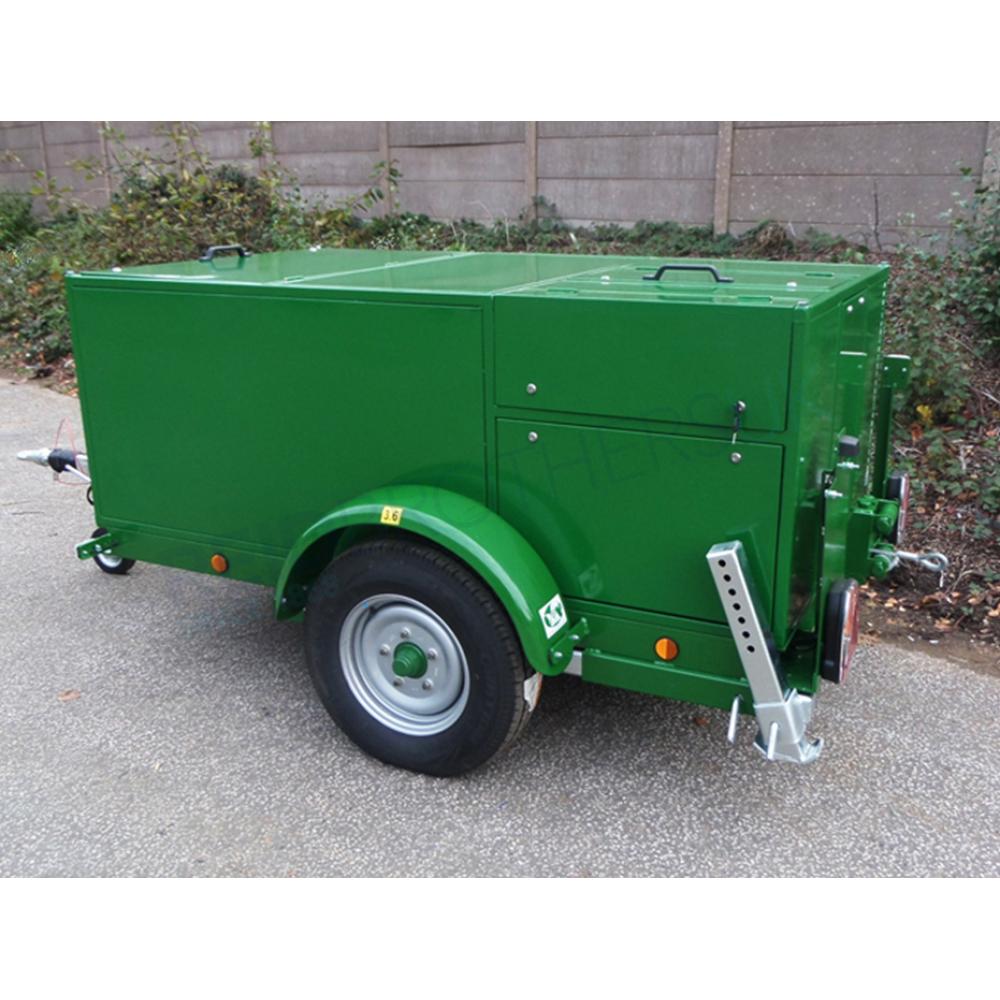

Power Cable Installation Winch - TCW3000/TCW4000

The TCW range of twin capstan, fully enclosed steel canopied winches are extremely robust pieces of engineering plant, designed specifically to cope with light/medium cable pulling equipment and other general utility pulling tasks. The TCW range of winches are designed to be simplistic in operation, and thus you will find the winches are very straightforward to maintain and service. The result is a product which is cost effective, will provide many years of service, is easy to operate and simplistic to maintain. The TCW range of winches would be an excellent addition to your plant fleet.

Available for export

Key product features

Other Features

Operating hour's meter

2 x Emergency Stop buttons (winch mounted)

1 x Emergency Stop button on 5mtr cable (remote)

Digital rope meter counter

Digital line tension monitor

Line tension pre-set facility c/w controlled ramp down when set tension is achieved

Demountable steel canopy for major servicing/repair

Trench Boom (Optional Extra)

Winch Recording Facility (Optional Extra)

Winch recording facility c/w mounted printer & removable micro SD card, recording offers:

Cable Drum ID

Time

Length

Line Pull

Setting of Max Overload: Will print when that figure is reached

TCW3000

Payload (approx)	Line Pull	Rope Layering	Engine	Rope Capacity	Line Speed
50mtrs/min	12mtrs/min @ 3000Kgs	Fully Automatic	17.75Kw Lombardini Water Cooled Diesel Engine	1000mtr x 10mm diameter	Fully Variable via console mounted lever

TCW4000

Payload (approx)	Line Pull	Rope Layering	Engine	Rope Capacity	Line Speed
25mtrs/min	10mtrs/min @ 4000Kgs	Fully Automatic	17.75Kw Lombardini Water Cooled Diesel Engine	1000mtr x 10mm diameter	Fully Variable via console mounted lever
