Adjustable Width Trailer Adjustable Width Trailer

Adjustable Width Trailer

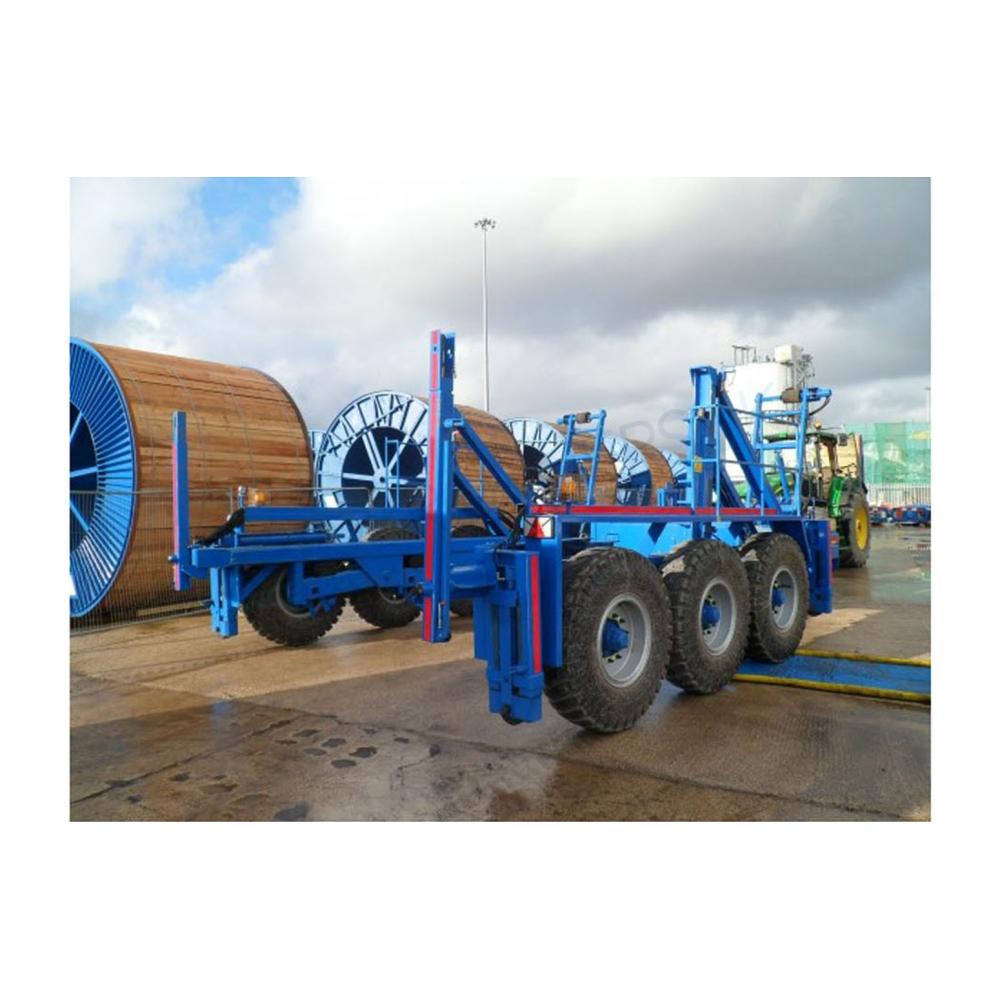

Cable Drum Trailers are designed for safely unreeling and transporting various sizes of cable drums to and from sites. Perfect for supporting cable pulling machines, our range of Adjustable Width Cable Drum Trailers have been designed to cope with the ever-growing sizes of Cable Drums.
  • Hydraulically adjustable trailers
  • Available from 20,000kg to 50,000kg capacity
  • Support cable pulling machines
  • Available for export available for export

Key product features

About the Adjustable Width Trailers

Are you looking to transfer cable drums over a long distance? Or even just around site? Well, you’re in the right place. The Adjustable Cable Width Trailers are designed to support cable pulling machines in all operations, with its unique adapting width feature.

High voltage cables are now being laid underground to improve safety instead of over headlines. Due to this, cables are now being manufactured in longer lengths, which reduces the number of joints being made. However, this is having a major impact on the size of the drums.

Standard cable drum trailers are finding it very difficult to deal with the increase in width and diameter of these drums, proving to be too wide. This is where the adjustable width cable drum trailers have an advantage. They guarantee the safe transportation of trailers to their site, with the feature of adjusting the width to accept all relevant drum sizes.

Our Range

Adjustable Width Cable Drum Trailers are hydraulically adjusted and are available in a variety of sizes ranging from a 20,000kg to a 50,000kg capacity. These trailers can be adjusted on site to accommodate the varying width of drums.

For more details on this product or if you are looking for alternative specifications that you do not see here, give us a call on 0141 425 1060 and we will be more than happy to help you out.


Key Features

  • The adjustable width section is hydraulically operated, with the controls situated at the stationary front section of the trailer.
  • The hydraulically operated Jacking System elevates the trailer to allow the sides to extend & retract
  • You select the width drum you are going to utilise and then insert a pin at the correct point to secure the chassis for use.
  • The drum drive system is attached to the main sides of the trailer and thus widens and retracts with the trailer itself.
  • The controls for the drum drive system and power lift units will be located at the rear of the trailer
