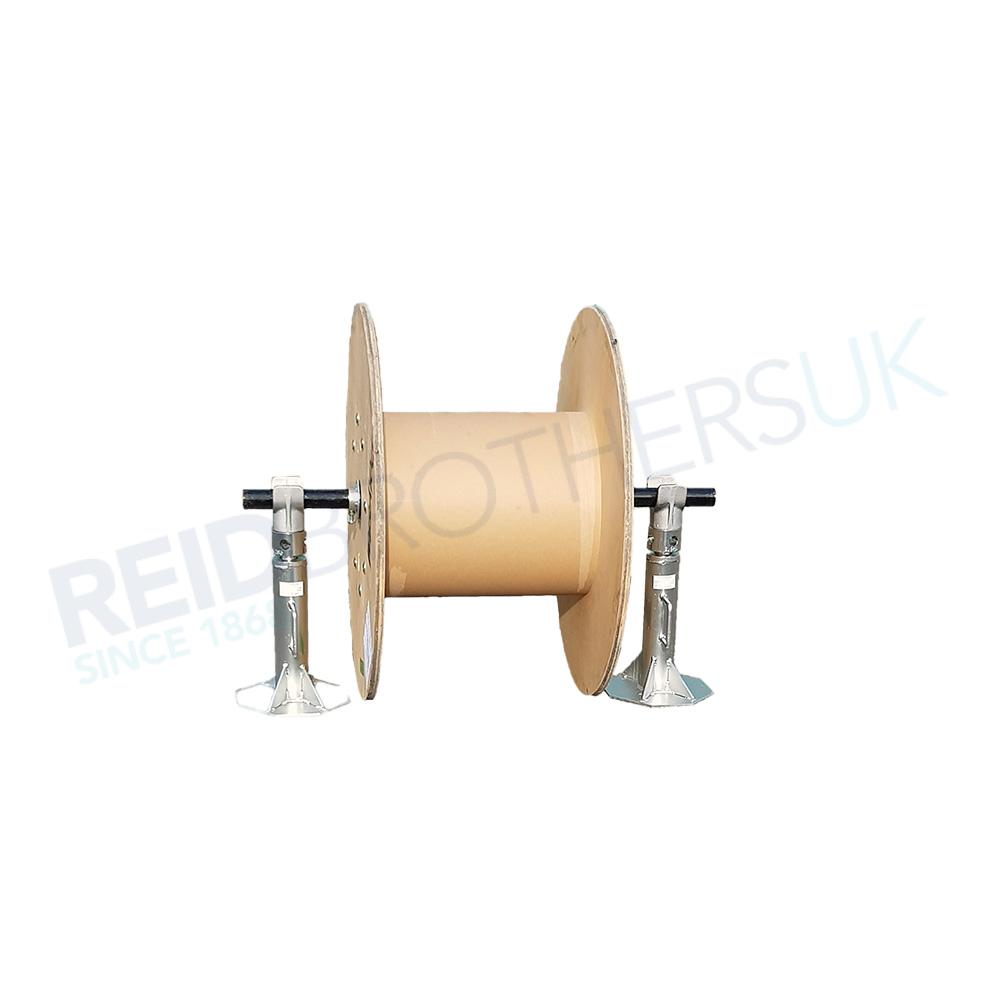

Screw Jacks

Screw Jacks are a range of Cable Drum Lifting Jacks which have been designed for heavy-duty use. They lift and support large, heavy cable drums by reeling the cables from the drum safely and easily.
  • Locking collars can be ordered on request
  • Versatile and easily adjustable
  • Robustly engineered for regular use
  • Available for export available for export

Key product features

This product is used primarily for the safe elevation of cable drums. Made from stainless steel, these sturdy and robust products are able to withstand a large variety of corrosive environments, making them perfectly suitable for use on building sites etc. as they are weatherproof and designed to provide long-lasting reliability.

  • Always push cable drums in the direction of travel.
  • Always use approved equipment for handling cable drums.
  • Never allow cable drums to move in an uncontrolled manner.
  • Always ensure that you have carried out a site specific risk assessment.
Product Capacity Per Pair Min. Drum Diameter Max. Drum Diameter Base Area Weight Per Pair
SJ3 3 tn SWL 1060mm 1600mm 300x300mm 37Kgs
SJ6 6 tn SWL 1360mm 1900mm 460x300mm 45Kgs
SJ8 8 tn SWL 1660mm 2200mm 600x300mm 76Kgs
