HCL Smart Protectors

Smart® Protectors are used along with Smart® Band and Smart® Ties to protect the cables in downhole. Can be used to separate and tidy up various other items that are strapped with Smart® products. Different sizes available.
  • Available for export available for export

Key product features

About HCL Smart Protectors

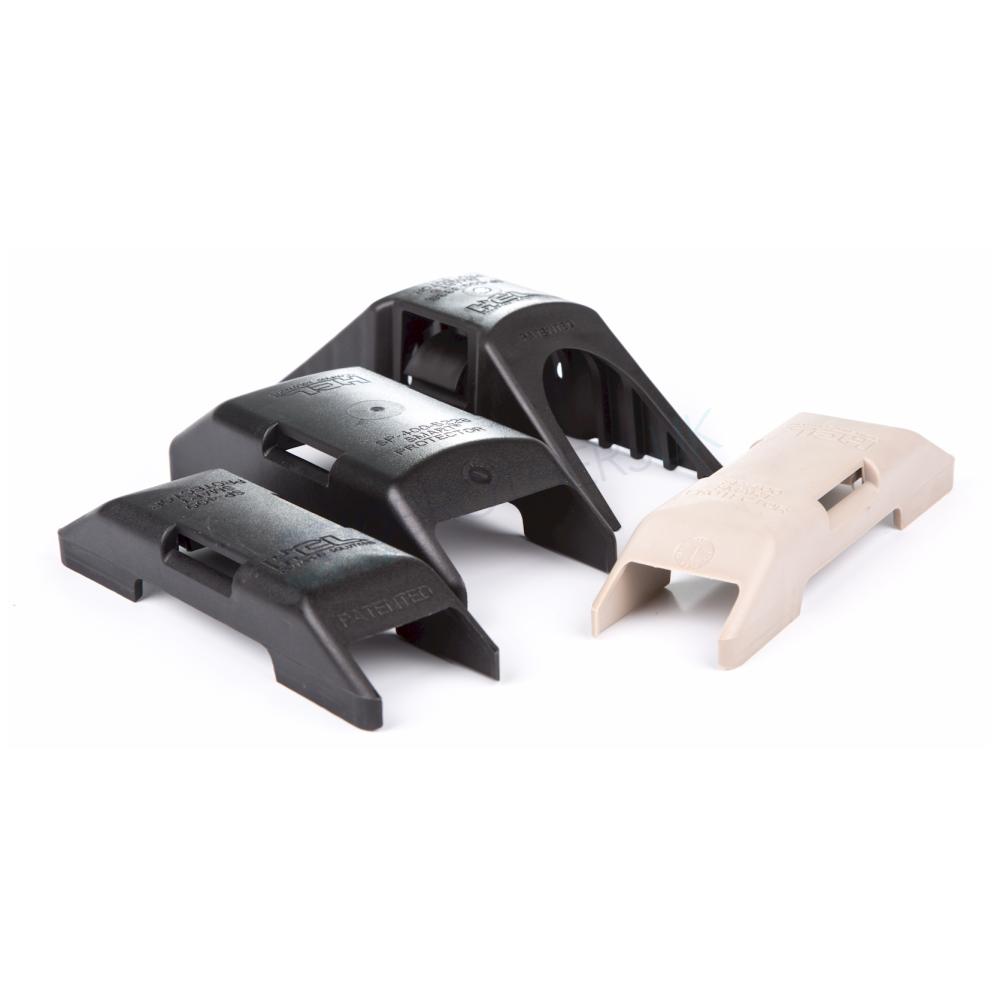

The Smart ® Protector is not only used as a cable protector downhole. It can be used as well to protect & attach cables in many other situations in conjunction with either the Smart® Band or Smart® Tie.

These are the attachment of Cathodic protection cables to Marine structures and the attachment of Sensor cables to Risers Subsea.

The Smart ® Protector is a patented product developed in cooperation with Shell. It is designed to operate within restricted annular clearances, to accommodate various tubing diameters, all coupling types and most cable combinations.



These protectors are available in Nylon 66, Nylon 11, Nylon 12, PPS or PEEK to assist Smart® Band and Smart® Ties.

See table below for specifications



Product Sheets

HCL Smart Products Catalogue
HCL Smart Products Catalogue

Key Features

  • High temperature resistance up to 250°C (482°F)
  • Fits any tubing diameter or coupling length
  • Can be used for multi-line installations
  • Prevents cable snagging
  • Low profile and low friction coefficient
  • Available for many different cable configurations
  • Will not hang in BOP stack
  • Easy to mill


Material Max Temperature Longevity Gas Resistance
Nylon 66 125°C Medium Term Limited
Nylon 11 105°C Long Term Fair
Nylon 12 105°C Long Term Fair
PPS 175°C Long Term Very Good
PEEK 250°C Long Term Excellent
