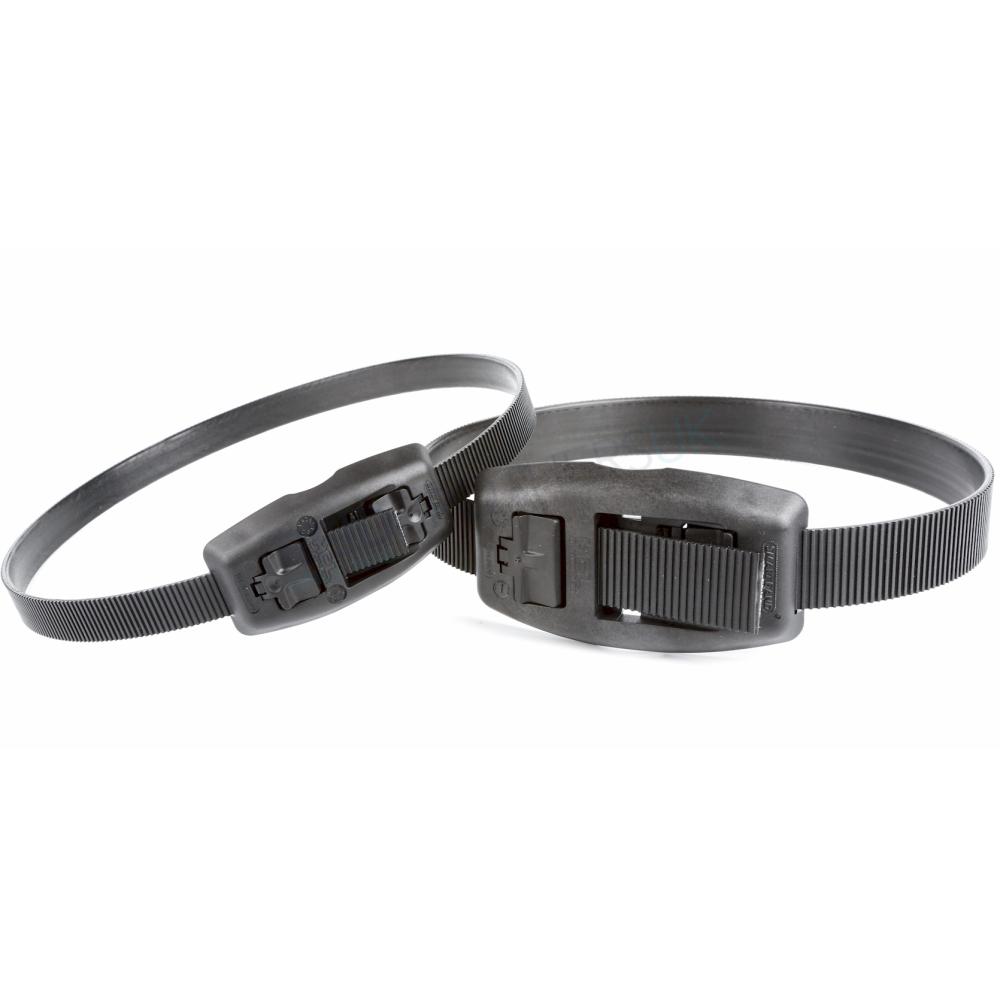

HCL Smart Hybrid Band

Smart® Band Hybrid is a premium clamping solution which is often used as a replacement for Inconel 625, Stainless Steel, Monel and Titanium bands in the offshore and subsea industries.
  • Available for export available for export

Key product features

About the Material

The beauty of this band and buckle system is that it is manufactured either from Nylon 66, Nylon 12 GF or Acetal POM each coming in ¼” (3/4”) or 1 ¼” (32mm) sizes.

Each of these materials have different characteristics meaning you can choose the one that suits your application. If the correct polymer is chosen, the Smart® Band Hybrid can withstand Sour (CO2) & Sweet (H2S) Gases, UV beams, high temperatures and salt water.

Unrivaled quality

Low profile buckle was designed in order to allow this system to be used in downhole applications and, just like Smart® Band Standard, this band comes in rolls which means it can be cut to required length.

Benefits of Nylon 12 (PA 12)

  • Low water absorption
  • High strength and flexibility
  • Superior chemical and UV resistance
  • Excellent abrasion and surface slip characteristics
  • Remarkable high impact strength at low temperatures

Benefits of Nylon 66 (PA 66) Versatile and Quick and easy to use

  • High tensile strength
  • Improved stiffness
  • High chemical resistance
  • Heat and wear resistant, suitable for applications with a higher temperature

About Nylon 12GF - (Glass Filled Variant)

The Glass Filled variant of hybrid buckles are exactly as they sound, glass filled. The addition of glass to the polymer increases the rigidity and strength of the buckle, which combined with the band, makes this system one of the strongest available on the market.



Product Sheets

HCL Smart Products Catalogue

Features

  • Patented Hybrid Buckle
  • Excellent Chemical Resistance
  • Excellent Creep Resistance
  • Tried & Tested Offshore for over 10 years
  • High System Break Strength
  • Fully Corrosion Resistant
  • Strong Technical Support
  • Safe To Use - No Sharp Edges
  • Quick & Easy to Install

Application

  • VIV strake attachment - Helical strakes or VIV suppression
  • Piggyback Pipelay including DEH (Direct Electrical Heating) lines
  • Distributed & Flowline Buoyancy attachment
  • Cable Protection solutions (Half Shells) - subsea pipeline protection, subsea & wind farm cables
  • Cable & Sensor Attachment

Band Specifications


Band Width Available Lengths Material Max System Strength Sutability
¾" (19mm) 30m & 60m Nylon 66 2677lbf ( 1215kgf ) Onshore
¾" (19mm) 30m & 60m Acetal POM 2244lbf ( 1018kgf ) Offshore
¾" (19mm) 30m & 60m Nylon 12 2817lbf ( 1278kgf ) Subsea/Long Life
1 ¼" (32mm) 30m Nylon 12 5170lbf ( 2346kgf) Subsea/Long Life

Buckle Specifications


For Band Widths Style Material Sutability Min. Order Quantity
¾" (19mm) Hybrid Nylon 66 Onshore 20
¾" (19mm) Hybrid Acetal POM Offshore 20
¾" (19mm) Hybrid Nylon 12GF Subsea/Long Life 20
1 ¼" (32mm) Hybrid Nylon 12GF Subsea/Long Life 10
