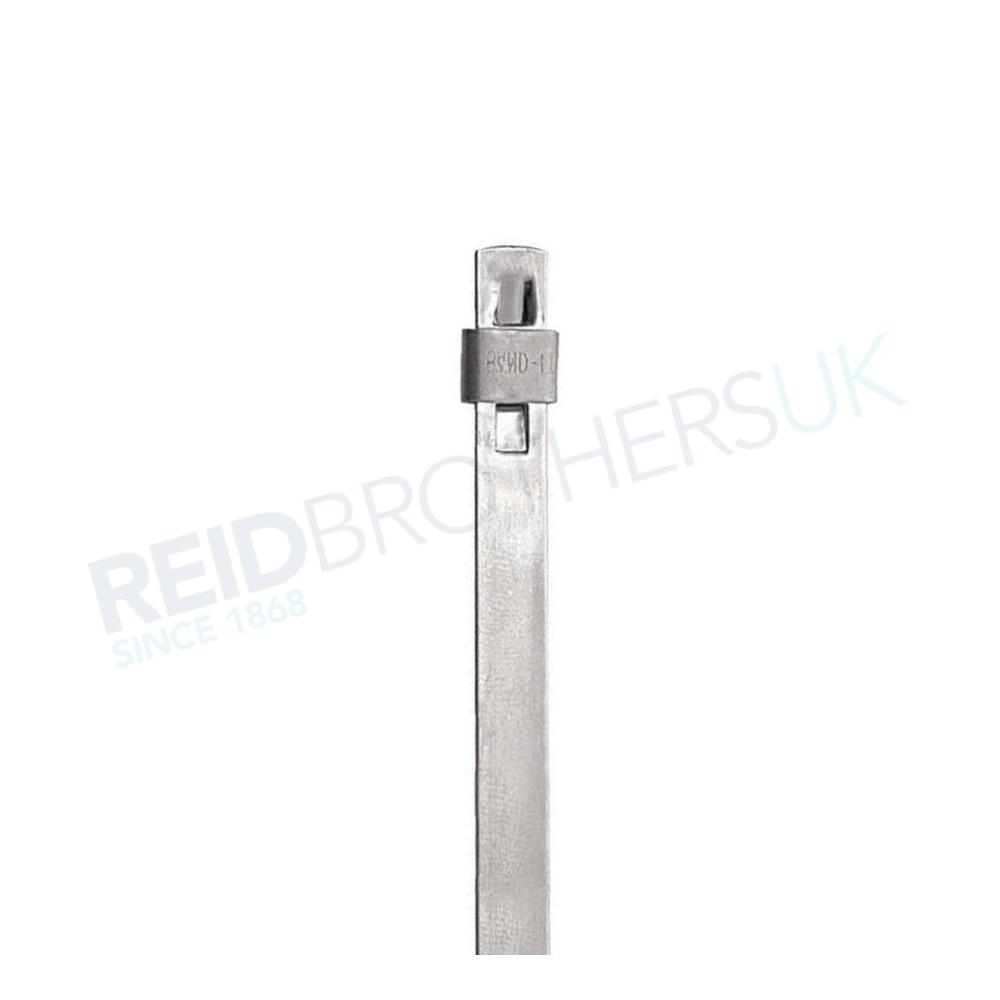

Band-IT Ultra-Lok Ties - 19"

BAND-IT's strongest stainless steel tie with Ultra-Lok® locking style.
  • Smooth ID ties with low profile
  • Stainless Steel tie with Ultra-Lok locking style
  • Provides fast, reliable, consistent clamp
  • Available for export available for export
Please choose an option

Key product features

The BAND-IT Ultra-Lok range of stainless steel cable ties provide fast and reliable bundling of LV MV HV cables for maximum strength, reliability and clamping of cables. The corrosion resistant stainless steel ties are used to bundle, tie or fasten cables in both onshore and offshore locations including industrial, substation and hazardous area locations, with potentially explosive atmospheres.

BAND-IT Ultra-Lok cable ties are LSF LSZH (Low Smoke & Fume | Low Smoke Zero Halogen) and feature excellent corrosion resistance to aggressive chemicals, hydrocarbons, drilling fluids, electrical insulating oils and extreme operating temperatures (fire resistant/fire retardant).

BAND-IT AU stainless steel cable ties have an Ultra Lok locking style – the smooth ID ties feature a low profile and strong patented dimple lock to prevent damage to cable sheath/jackets.

  • Smooth ID ties with low profile
  • Stainless Steel tie with Ultra-Lok locking style
  • Provides fast, reliable, consistent clamp
  • Great for bundling cable

Band-IT Ultra-Lok Ties


Part # Material Width Length Thickness Max Diameter Single Loop Max Loop Tensile Strength Package Quantity Package Weight
AU2029 201 SS ¼" / 6.4mm 8" / 203mm 0.015" / 0.38mm 1.5" / 38mm 400lbs 100 / Bag 1.0lbs / 0.5kg
AU2039 201 SS ¼" / 6.4mm 10" / 254mm 0.015" / 0.38mm 2.5" / 63mm 400lbs 100 / Bag 1.2lbs / 0.6kg
AU2049 201 SS ¼" / 6.4mm 12" / 305mm 0.015" / 0.38mm 3.0" / 76mm 400lbs 100 / Bag 1.4lbs / 0.7kg
AU2059 201 SS ¼" / 6.4mm 14" / 356mm 0.015" / 0.38mm 3.8" / 96mm 400lbs 100 / Bag 1.6lbs / 0.8kg
AU2069 201 SS ¼" / 6.4mm 16" / 406mm 0.015" / 0.38mm 4.5" / 114mm 400lbs 100 / Bag 1.9lbs / 0.9kg
AU2079 201 SS ¼" / 6.4mm 19" / 483mm 0.015" / 0.38mm 5.4" / 137mm 400lbs 100 / Bag 2.2lbs / 1.0kg
AU2089 201 SS ¼" / 6.4mm 24" / 610mm 0.015" / 0.38mm 7.0" / 177mm 400lbs 100 / Bag 2.7lbs / 1.3kg
AU2099 201 SS ¼" / 6.4mm 29" / 37mm 0.015" / 0.38mm 8.0" / 215mm 400lbs 100 / Bag 3.3lbs / 1.5kg
AU2159 201 SS ¼" / 6.4mm 35" / 889mm 0.015" / 0.38mm 10.5" / 266mm 400lbs 100 / Bag 3.9lbs / 1.8kg
