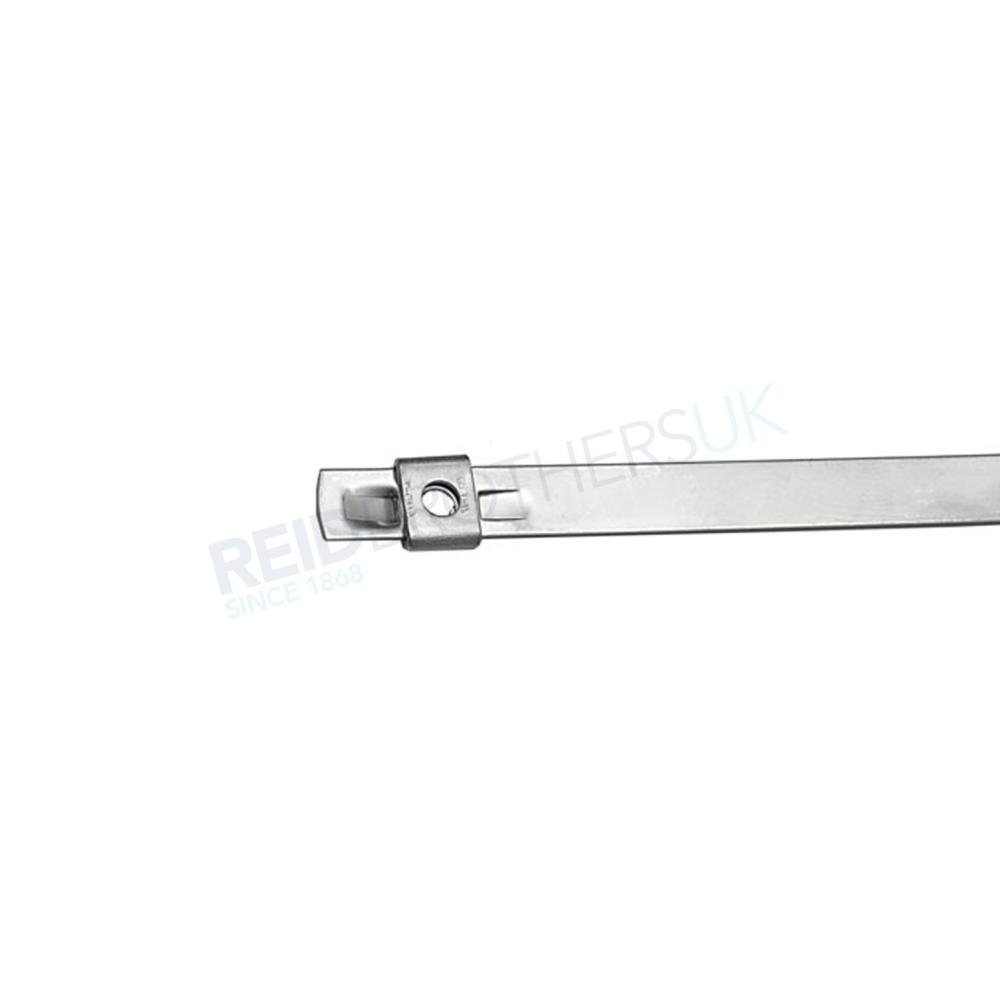

Band-IT Mini Tie-Lok Tie

Band-IT Mini Tie-Lok Ties offer a unique, patented dimple lock with a smooth ID and a low profile. This is a fast, consistent and reliable clamp. Used in many industries from automotive to cable bundling

Available for export

Key product features

304 Stainless steel offers very good resistance to mild atmosphere, fresh water and the sun's UV rays

When installed with the A92079 Tie-Lok II tool can withstand forces above 250 pounds

Forms a low profile single wrapped assembly to secure cables, hoses, I.D. Tags, CV Boots, filter bags

Locks under full tension - no slip-back
Low profile buckle
A strong patented dimple lock
304 stainless steel
Great for cable bundling or ID attachment

Band-IT Mini Tie-Lok Ties - 304 Stainless Steel Range

Part #	Material	Width	Length	Thickness	Max Diameter Single Loop	Max Loop Tensile Strength	Package Quantity	Package Weight
AS2219	304 SS	0.177" / 4.5mm	181mm	0.015" / 0.38mm	1" / 25mm	100lbs	100 / Bag	0.7lbs / 0.3kg
AS2229	304 SS	0.177" / 4.5mm	254mm	0.015" / 0.38mm	2" / 51mm	100lbs	100 / Bag	0.9lbs / 0.4kg
AS2239	304 SS	0.177" / 4.5mm	406mm	0.015" / 0.38mm	4" / 102mm	100lbs	100 / Bag	1.4lbs / 0.7kg
AS2249	304 SS	0.177" / 4.5mm	572mm	0.015" / 0.38mm	6" / 152mm	100lbs	100 / Bag	1.9lbs / 0.9kg
AS2259	304 SS	0.177" / 4.5mm	737mm	0.015" / 0.38mm	8" / 203mm	100lbs	100 / Bag	2.4lbs / 1.1kg

Band-IT Mini Tie-Lok Ties - 316 Stainless Steel Range

Part #	Material	Width	Length	Thickness	Max Diameter Single Loop	Max Loop Tensile Strength	Package Quantity	Package Weight
AS4219	316 SS	0.177" / 4.5mm	7.0" / 165mm	0.015" / 0.38mm	1" / 25mm	100lbs	100 / Bag	0.7lbs / 0.3kg
AS4229	316 SS	0.177" / 4.5mm	10" / 254mm	0.015" / 0.38mm	2" / 51mm	100lbs	100 / Bag	0.9lbs / 0.4kg
AS4239	316 SS	0.177" / 4.5mm	16" / 406mm	0.015" / 0.38mm	4" / 102mm	100lbs	100 / Bag	1.4lbs / 0.7kg
AS4249	316 SS	0.177" / 4.5mm	22.5" / 572mm	0.015" / 0.38mm	6" / 152mm	100lbs	100 / Bag	1.9lbs / 0.9kg
AS4259	316 SS	0.177" / 4.5mm	29" / 737mm	0.015" / 0.38mm	8" / 203mm	100lbs	100 / Bag	2.4lbs / 1.1kg
