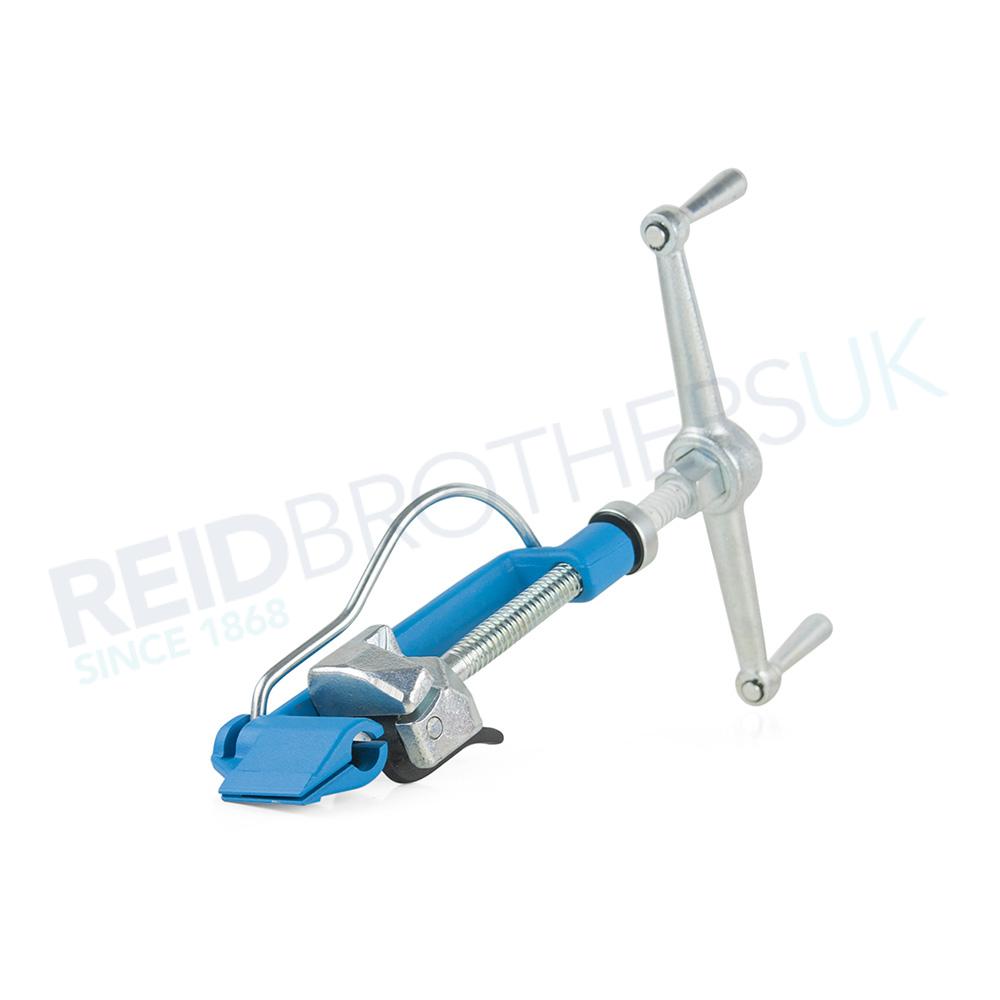

Band-IT G402 Giant Stainless Steel Banding Tool

SKU: G402

The BAND-IT G402 Giant Stainless Steel Banding tool is used to tension and apply Giant Stainless Steel Band and Buckles to applications that require extra strength.

For use on band from ¾” to 1 ¼" x 0.044” thick band
Tensions over 5500lbs of force
Epoxy powder coated finish resists corrosive elements
Weight: 5.307kg

Available for export

Key product features

About

The BAND-IT G402 Giant Stainless Steel Banding Tool is ideal for use on applications that require extra strength to apply giant stainless steel band and buckles. The G402 has a Threaded Tension Nut integrated into the handle of the tool which provides superior wear protection, especially when in use. This tool has a blue epoxy powder coating which resists corrosive environments. The Giant Stainless Steel Banding tool can tension and cut off the tail of the clamp being formed.

Properties

The BAND-IT G402 Giant Stainless Steel Banding tool weighs 5.3kg and can clamp and band a range of widths of stainless steel band from 19mm up to 32mm. (3/4” to 1 ¼”)

Ideal for heavy duty application such as:

Securing Stainless Steel Band around concrete pump

Hose clamping

Transformer clamping

EGR clamping

Railway sleeper banding applications etc.

Hose assembly

Bundling

Sign mounting

The Simple 6-Step Application Process

1 - Clamp the band into the tool

2 - Turn the handle of the G402 tool to form tension around the application

3 - Once the correct tension has been reached, roll the nose of the tool over the buckle, at the same time relieve a slight amount of tension by turning the handle backwards.

4 - Pull the cutting handle to cut the band

5 - Hammer down the tail between the buckle ears

6 - Finally, hammer down the ears of the buckle to secure the tail
